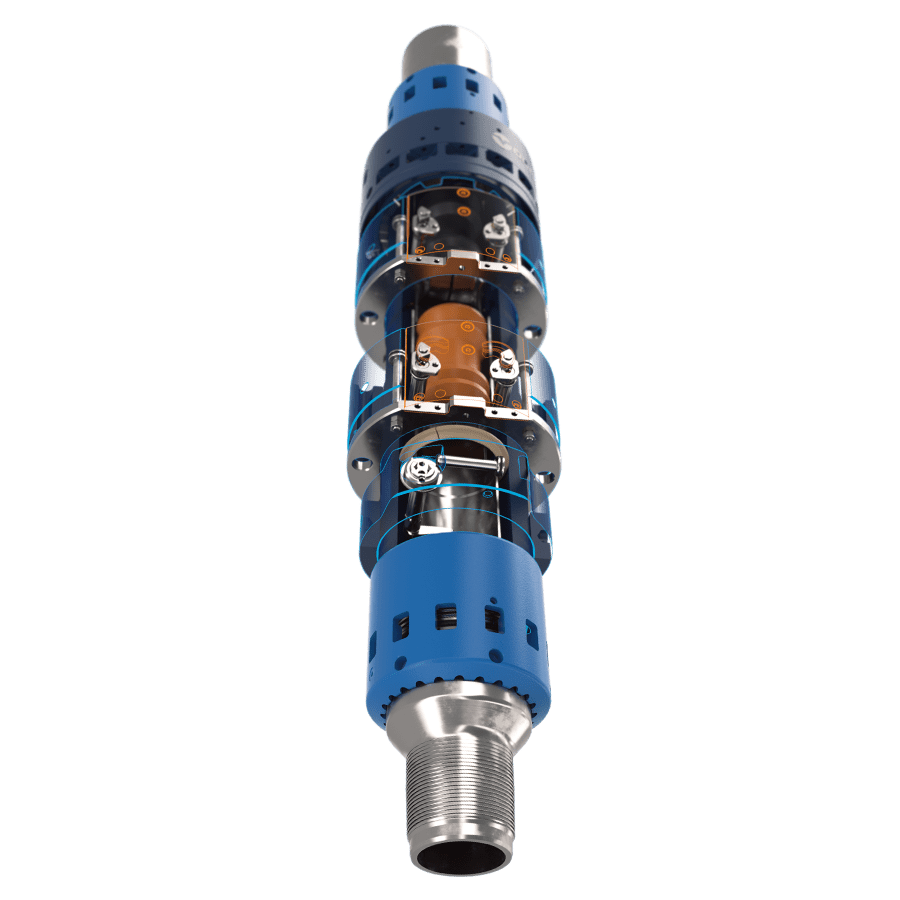

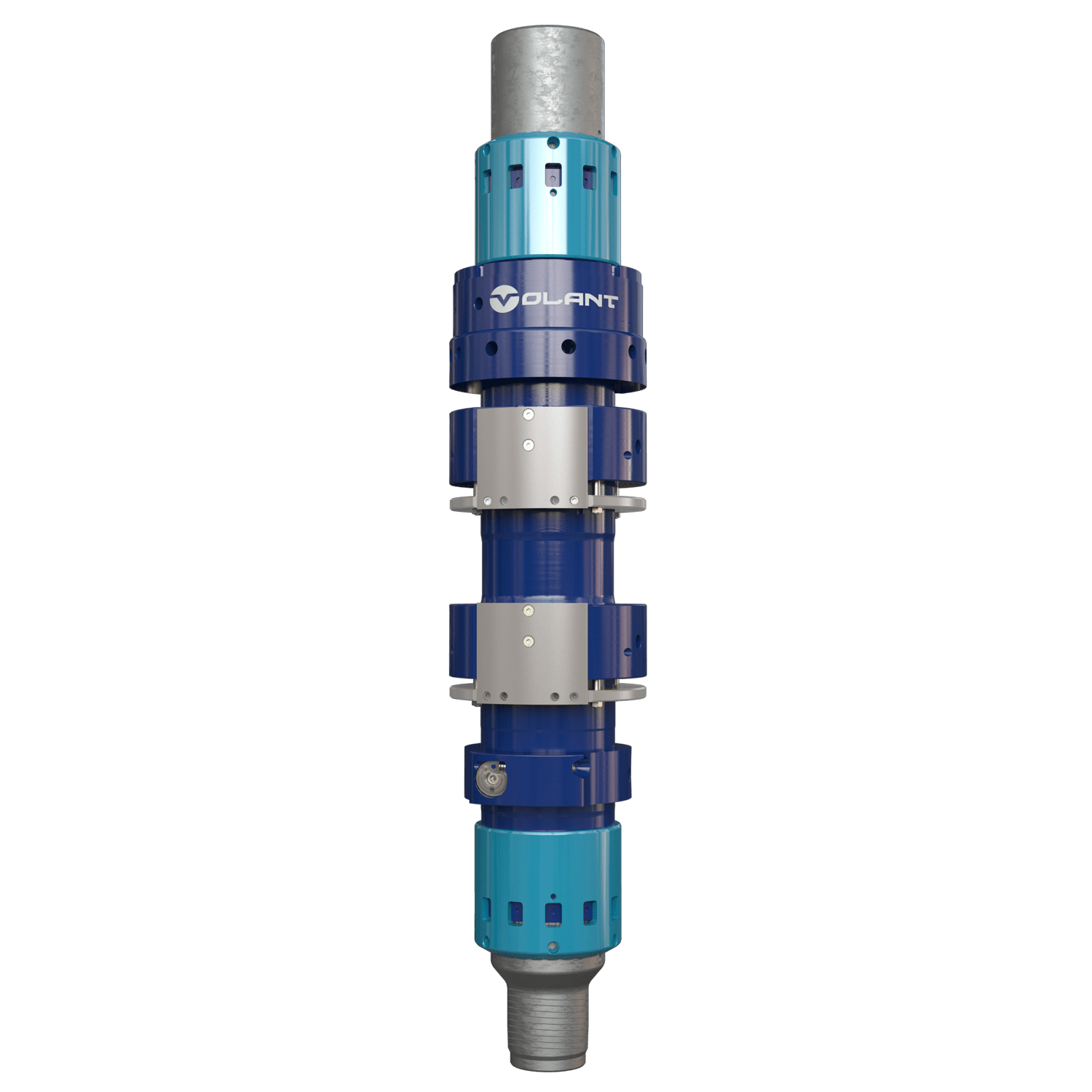

Plug Launcher

Simplify operations and preserve cement continuity by introducing the Volant PL Plug Launcher to the stack. The Plug Launcher is installed above the last joint of casing and enables the worry free release of plugs through a patent pending radially balanced collet release system, eliminating the challenges of other pin or valve release systems.

Compatible with both Volant’s CRTi® and CRTe® casing running tools and Cement Swivel Tool for increased cementing efficiency
Pending radially balanced collet release system eliminates challenges of other pin or valve release system by releasing the plug with a uniform release
Configuration options available to launch multiple sizes of plugs to eliminate rig-out requirements

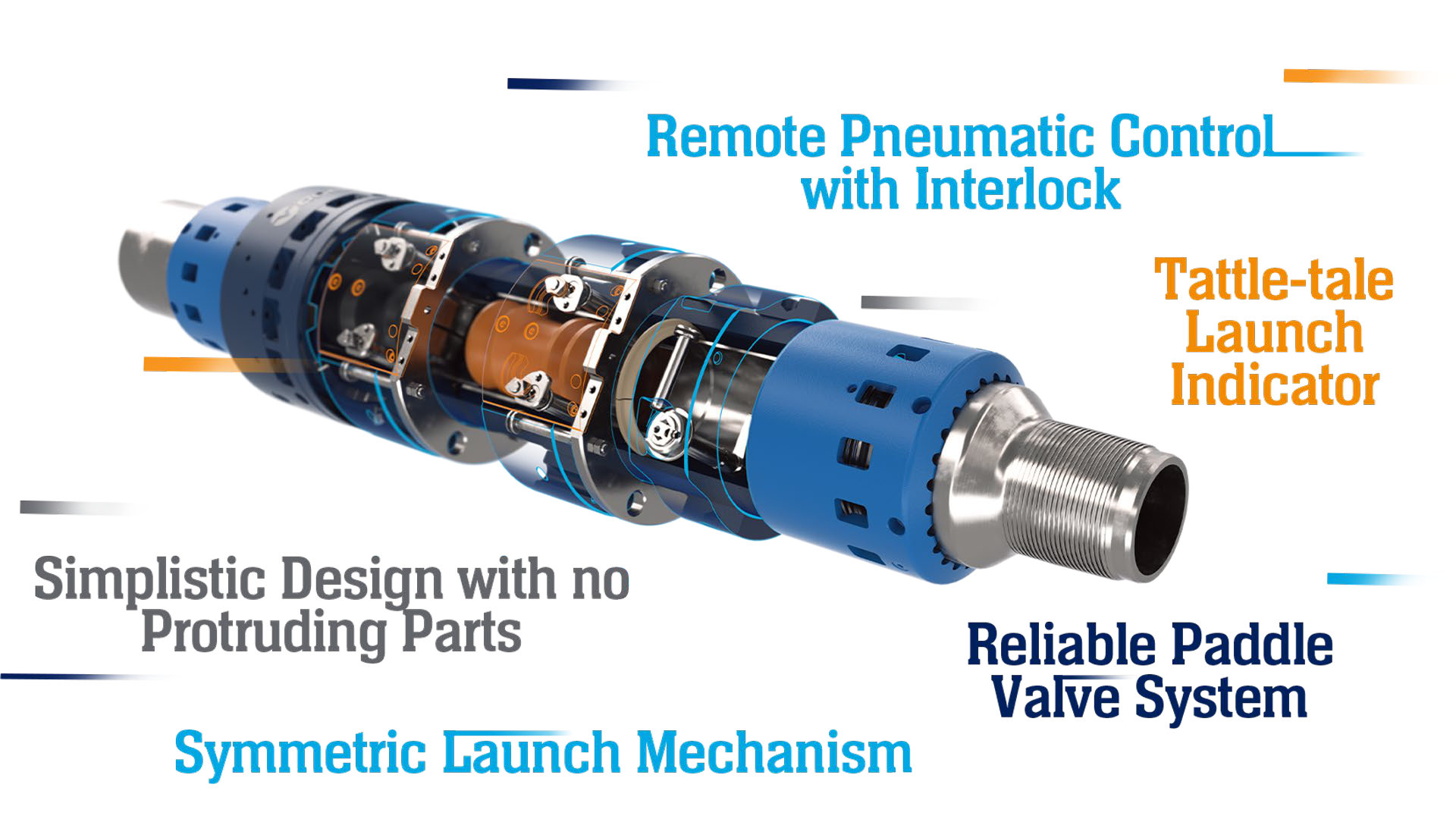

Mechanical tattle-tale flag indicating positive release
Torque lock architecture features simple assembly, disassembly and re-loading of plugs, eliminating requirement of a torque machine service
Flush OD configuration improves safety on rig floor during rotation and reciprocation

Stage	Number of Plugs	Working Length		Tool Weight
		In	(mm)	In	(mm)
Single Stage	1	92	(2,340)	2,600	(1,180)
Double Stage	2	119	(3,025)	3,500	(1,590)

Double Stage

Enables the release of a second cement wiper plug downhole without downtime to add new plug to tooL
